This device can be of use with 3-phase over and under voltage and over current protection along with real time voltage and current monitoring.

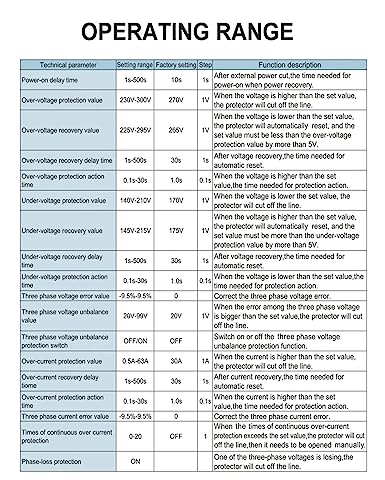

Quick Response: With 0.1 Second cut off time, you can set the response time ranging 0.1-30sec.
This Voltage Guard identifies and outings on Voltage Assymetry with auto recuperation capability once the evenness is re-established.
Phase Imbalance Protection: In case of difference between 3-phase voltage, the device will cut off. You can adjust this as per your need and requirement ranging 20-99V.
Phase Loss Protection: This feature is a must if this device is used for industrial purpose where all phase presence is required. In case of even one phase lost the device will cut off the power supply.
Voltage : 63A 220V Cut off time :0.1 Second response time ranging :0.1-30sec Measurement Accuracy : 300 Volts
