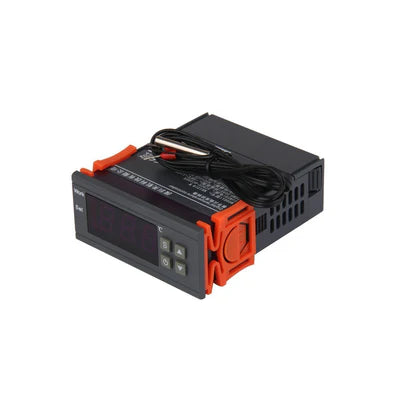

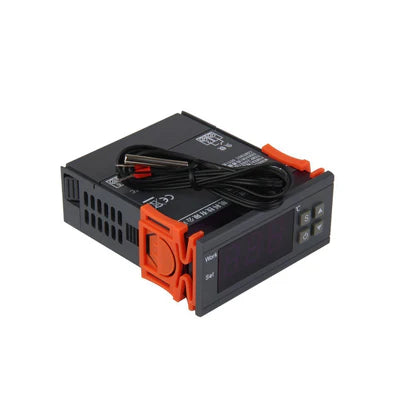

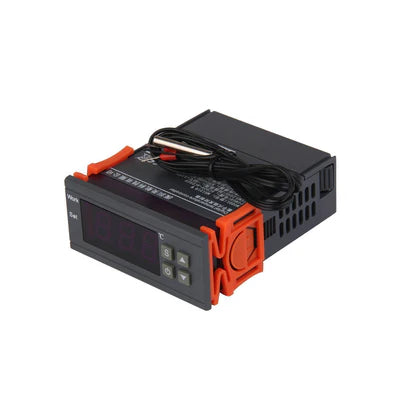

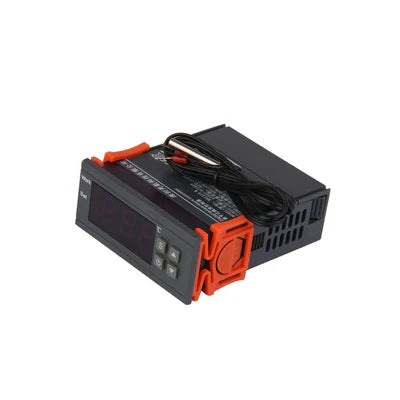

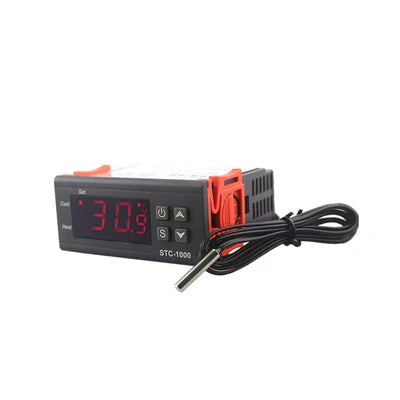

Reflex Temperature Controller

Candle Temperature Controller A TC-02

Switch the modes between cool and heat; Control temperature by setting the temperature set value and the different value; Temperature collaboration; Refrigerating control output delay protection; Alarm when temperature exceeded temperature limit or when sensor error.

Specification and size

• Front panel size: 75(L)x34.5(W)(mm)
• product size: 75(L)x34.5(W)x85(D)(mm)
• Mounting size: 71(L)x29(W)(mm)
• Sensor length: 2m(Include the probe)

Technical parameters

• Temperature measuring range: -50°C~90°C
• Resolution: 0.1°C
• Accuracy: +-1°C(-50°C~70°C)
• Power supply: 220VAC 50Hz/60Hz
• Power consumption: <3W
• Sensor: NTC sensor (1P°C)
• Relay contact capacity:Cool(10A/250VAC);Heat(10A/250VAC)
• Ambient temperature: 0°C~60°C
• Storage temperature: -30°C~75°C
• Relative humidity: 20~85%(No condensate)
