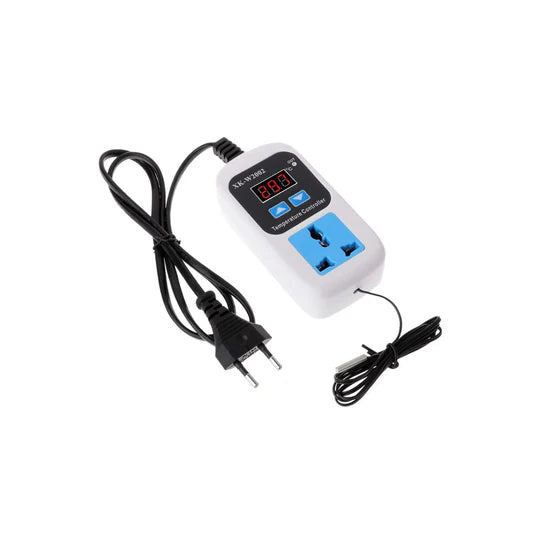

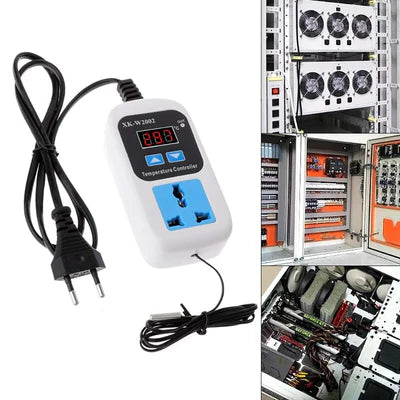

Reflex Temperature Controller

Candle Temperature Controller  A TC-01

Switch the modes between cool and heat, control temperature by setting the temperature set value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.

Specification and size

• Front panel size: 75(L)x34.5(W)(mm)
• Mounting size: 71(L)x29(W)(mm)
• Product size: 75(L)x34.5(W)x85(D)(mm)

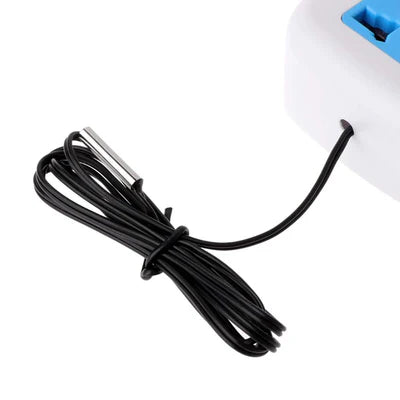

• Sensor length: 2m(include the probe)

Technical parameters

• Temperature measuring range: -50 °C~ 99 °C
• Resolution: 0.1 °C
• Accuracy: +- 1 °C (-50 °C~70°C)
• Power supply: 220VAC 50Hz/60Hz
• Power consumption: <3W
• Sensor: NTC sensor (1PC)
• Relay contact capacity: Cool(10A/250VAC);Heat(10A/250VAC)
• Ambient temperature: 0 °C~60 °C
• Storage temperature: -30 °C~75°C
• Relative humidity: 20~85%(No condensate)
