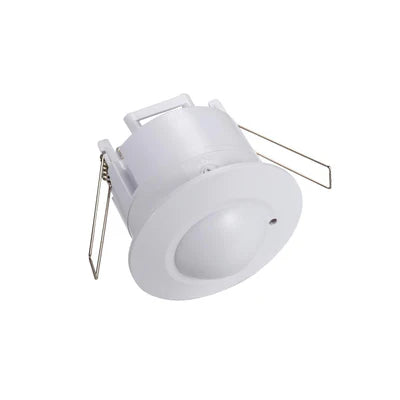

The product is a new saving-energy switch; it adopts microwave sensor mould with high-frequency electro-magnetic wave (5.8GHz), integrated circuit. It gathers automatism, convenience, safety, saving-energy and practicality functions. The wide detection field is consisting of detectors. It works by receiving human motion. When one enters the detection field, it can start the load at once and identify automatically day and night. Its installation is very convenient and its using is very wide. Detection is possible through doors, panes of glass or thin walls.

SPECIFICATION:
Power Sourcing: 220-240V/AC

Power Frequency: 50Hz
HF System: 5.8GHz CW radar, ISM band

Detection Range: 360°

Ambient Light: <3-2000LUX (adjustable)

Installing Height: 1.5~3.5m
Rated Load: 1200W (incandescent lamp)

Transmission Power: <10mW
300W (energy-saving lamp)

Time-Delay:min.:10sec±3sec

Power Consumption: approx 0.9W Max.: 12min ± 1min

Detection Distance: 1-8m (radius) adjustable

Detection Motion Speed: 0.6~1.5m/s
