CSTP 500 DC Top Mount Swing Gate Operator
CSTP 500 DC Top Mount Swing Gate Operator
Couldn't load pickup availability

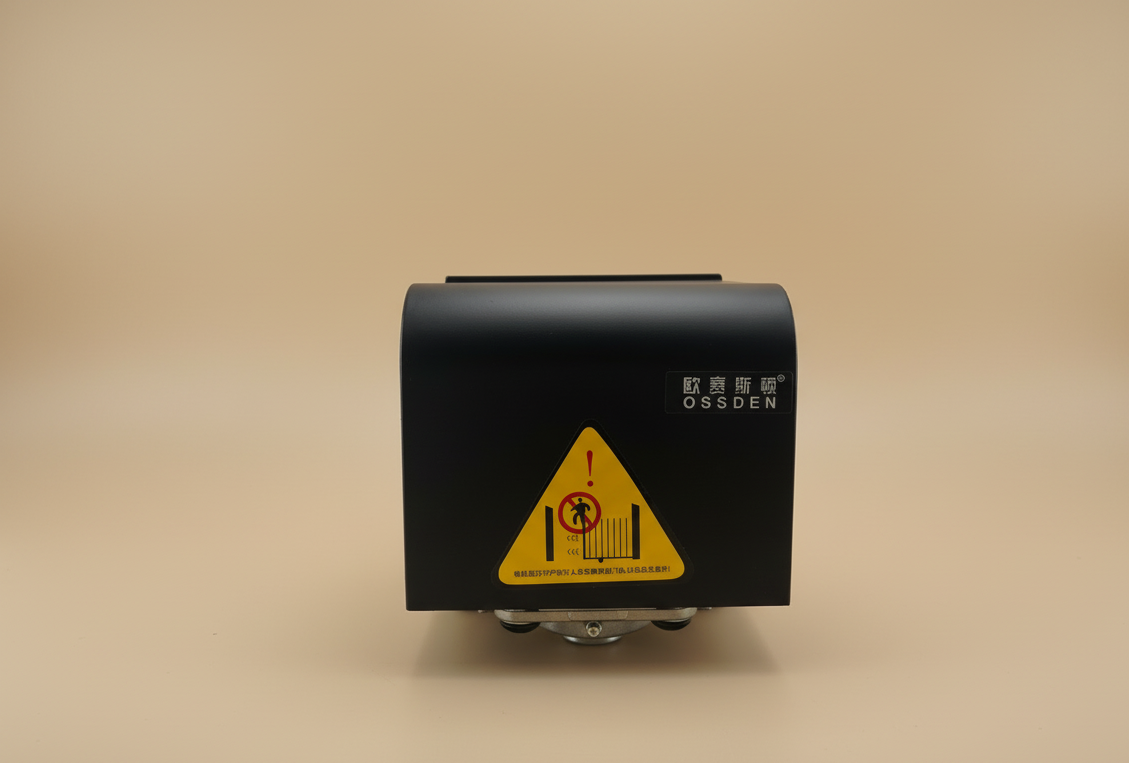

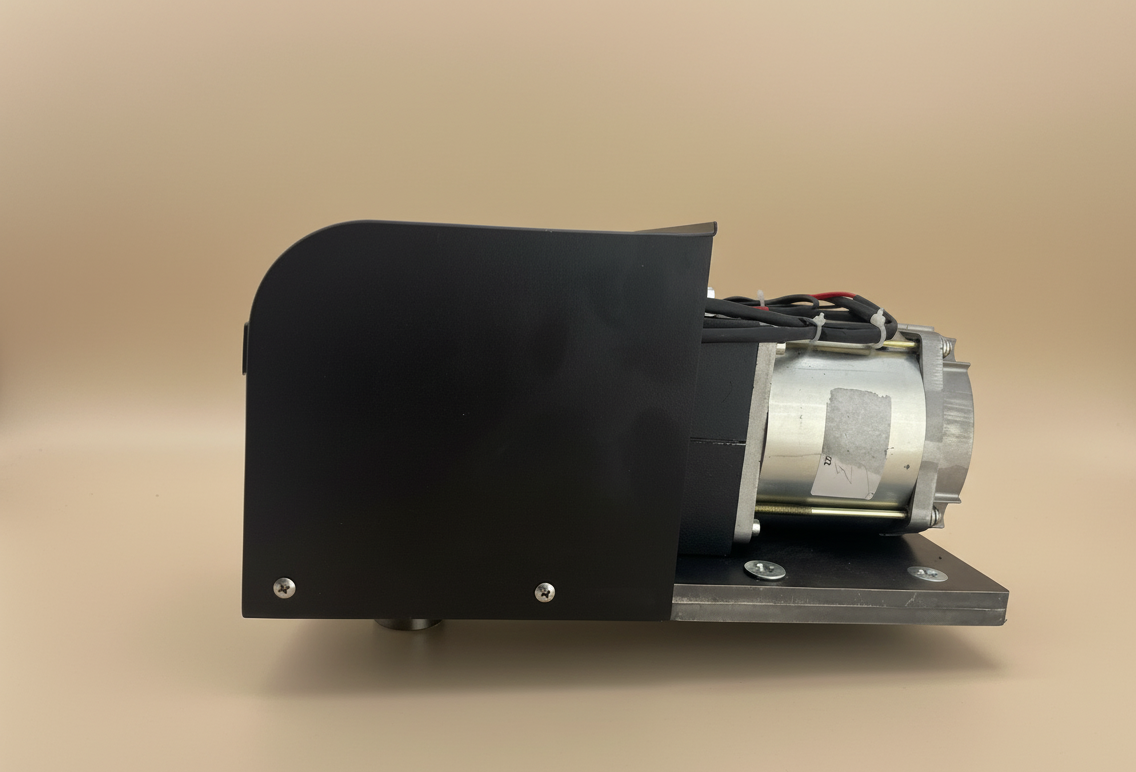

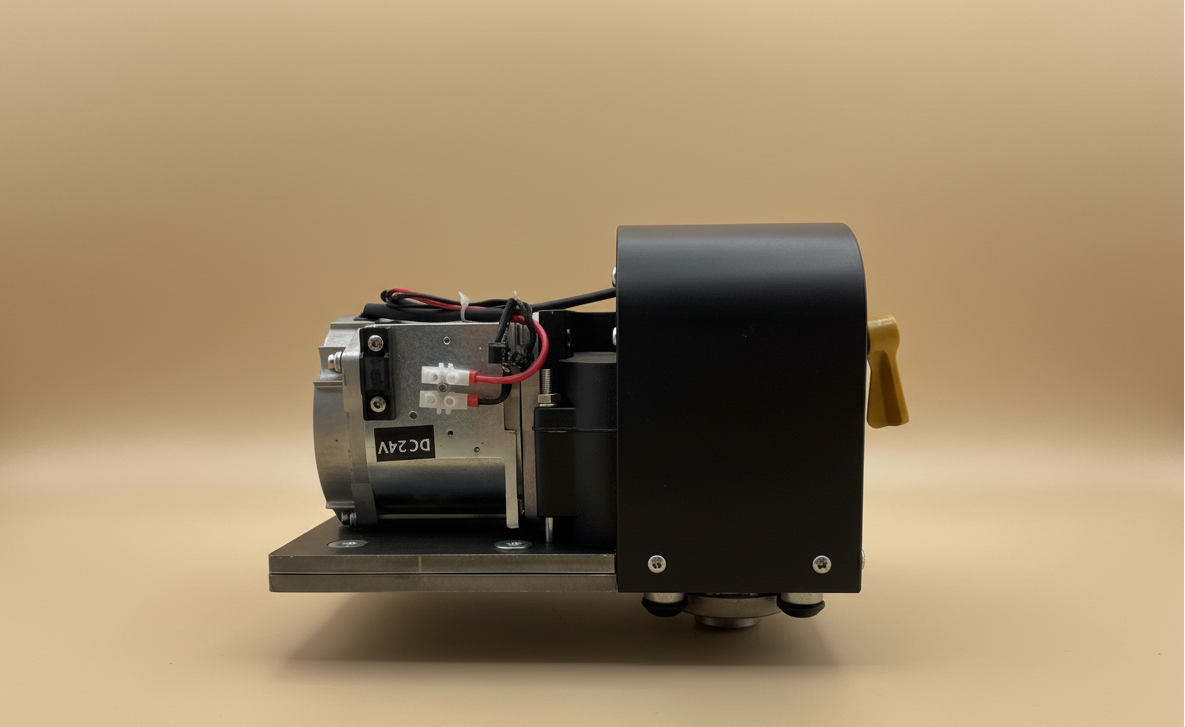

CSTP 500 DC Top Mount Swing Gate Motor – 500kg Capacity
Upgrade your entrance with our DC Top Mount Swing Gate Motor (500kg) – designed for low space areas, mounting on top of gate saving ground space.
Features:
💪 Heavy Load Capacity: Supports gates weighing up to 500 kg.
🚪 Smooth Operation: Ensures quiet and stable gate opening and closing.
🛡️ Safety Functions: Built-in obstacle detection with auto-stop protection.
🔑 Manual Override: Clutch key for manual operation during power failures.
🌦️ Weather-Resistant Design: Built to withstand outdoor conditions.
🎛️ Smart Controls: Works with remote controls, access systems, and optional smart home integration.
Click here to view Technical Specifications ▶
| Model: | CSTP 500 |
|---|---|
| Input Voltage: | 24V DC |
| Power: | 150W |
| Current: | 1.2 A |
| Max. Gate Weight: | 500 KG |
| Dimension of Door Opener: | 340× 168 × 178 mm |
| Dimension of Control Box: | 620 × 300 × 500 mm |
| Protection Class: | IP54 |
In the box:
- 2 X 14.5 kg Gate Motor
- 1 X Control Box
- 2 X Remote Controls
- Brackets, Fittings & Hardware
- Instruction Manual
- 2 X Control Box
- 2 X Clutch Key
- 2 X Block Iron
- 2 X Magnet
- 1 X Set Screw
- Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc
OEM Partner Availability ▶
Branding & White Labeling
- Products will be supplied without branding.
- OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.
Packaging & Documentation
- Standard packaging will be provided unless custom packaging is specified at order confirmation.
- OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).
Warranty & Support
- Standard warranty: from date of supply against manufacturing defects.
- Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
- Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.
Minimum Order Quantity (MOQ)
- White labeling/custom branding may require an MOQ (to be discussed during agreement).
- For smaller orders, products will be supplied in neutral/unbranded packaging.
Intellectual Property
- All designs, firmware, and core technology remain the property of the manufacturer.
- OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.
After-Sales Responsibility
- Replacement/repair for defective products will be supplied as per warranty terms.
- End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.
Optional Customization
- Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partner’s requirements.
- Custom firmware or feature modifications may be discussed separately.
