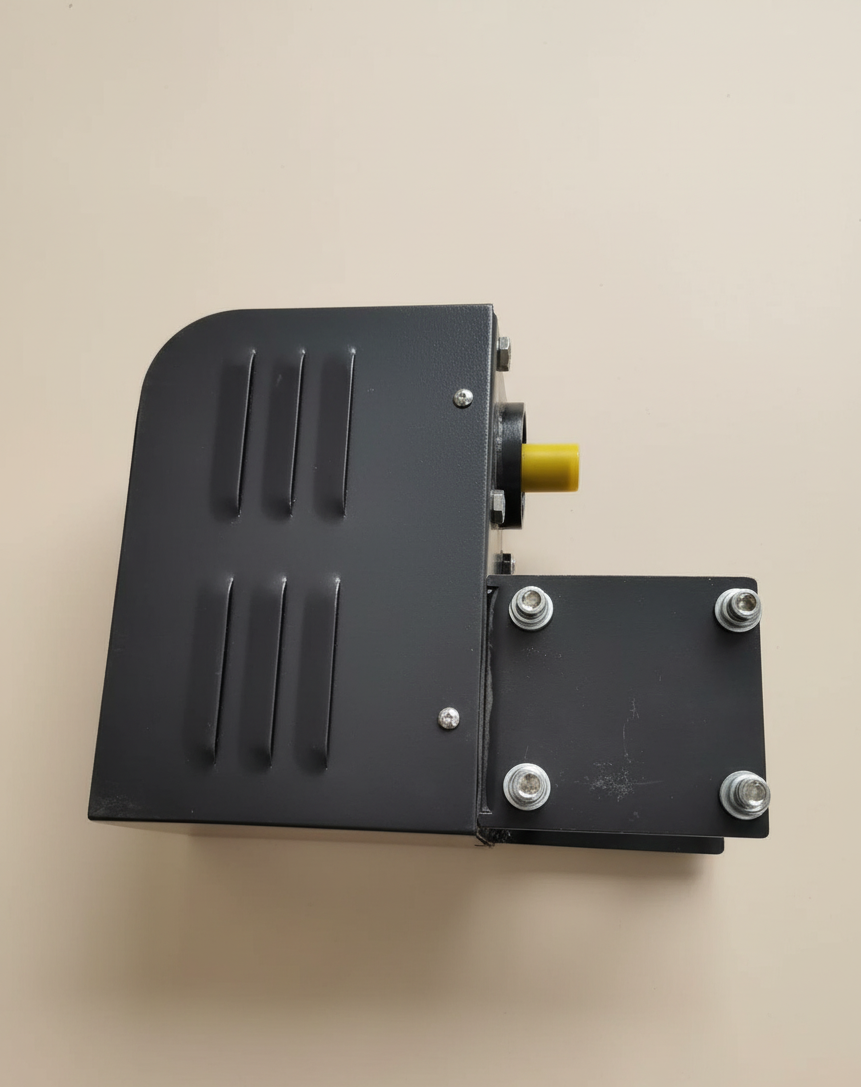

CSTP 300 DC Top Mount Single Swing Gate Operator

MOQ 1-10 11-50 51-100

Quantity

Rs. 60,000.00

Sale Sold out

Taxes included. Shipping calculated at checkout.

CSTP 300 DC Top Mount Single Swing Gate Motor – 300kg Capacity

Upgrade your entrance with our DC Top Mount Swing Gate Motor (300kg) – designed for pedestrian gates at low space areas, mounting on top of gate saving ground space.

Features:

💪 Heavy Load Capacity: Supports gates weighing up to 300 kg.

🚪 Smooth Operation: Ensures quiet and stable gate opening and closing.

🛡️ Safety Functions: Built-in obstacle detection with auto-stop protection.

🔑 Manual Override: Clutch key for manual operation during power failures.

🌦️ Weather-Resistant Design: Built to withstand outdoor conditions.

🎛️ Smart Controls: Works with remote controls, access systems, and optional smart home integration.

Click here to view Technical Specifications ▶

Model:	CSTP 300
Input Voltage:	24V DC
Power:	60W
Current:	3.8 A
Max. Gate Weight:	300 KG
Dimension of Door Opener:	340× 168 × 178 mm
Dimension of Control Box:	620 × 300 × 500 mm
Protection Class:	IP54

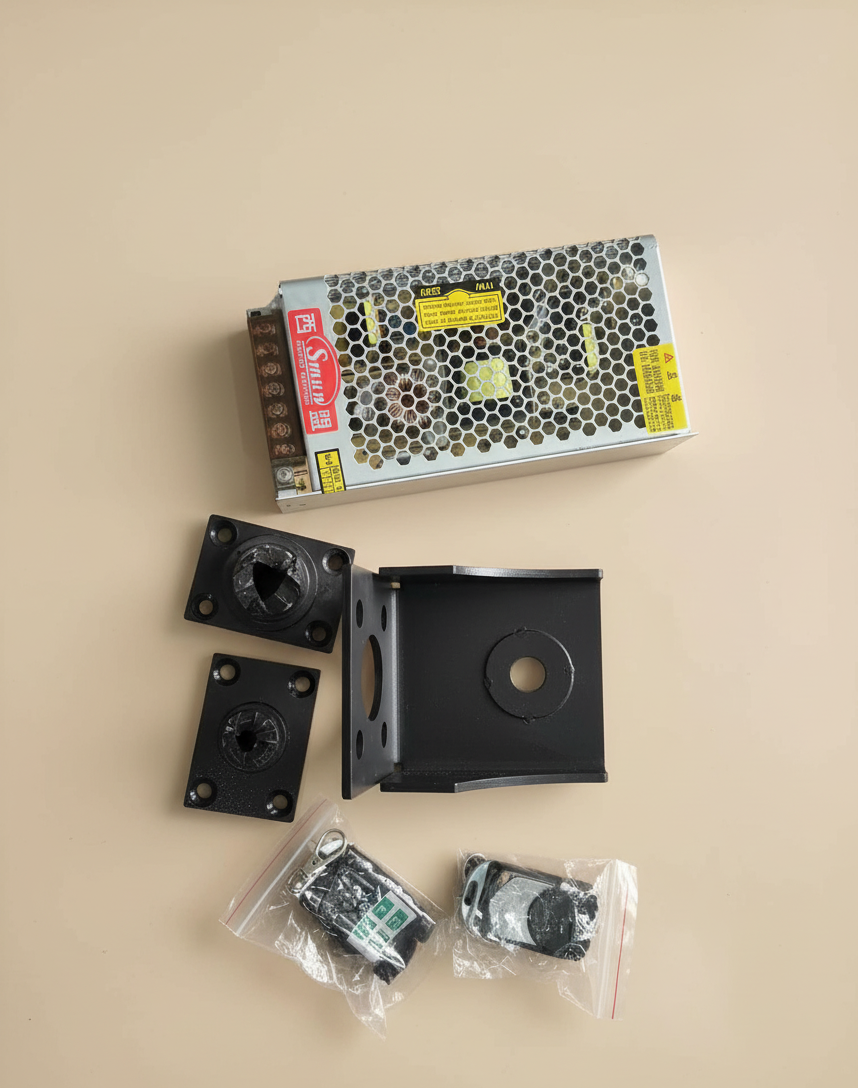

In the box:

1 X 13 kg Gate Motor
1 X Control Box
2 X Remote Controls
Brackets, Fittings & Hardware
Instruction Manual
2 X Control Box
2 X Clutch Key
2 X Block Iron
2 X Magnet
1 X Set Screw
Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc

OEM Partner Availability ▶

Branding & White Labeling

Products will be supplied without branding.
OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.

Packaging & Documentation

Standard packaging will be provided unless custom packaging is specified at order confirmation.
OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).

Warranty & Support

Standard warranty: from date of supply against manufacturing defects.
Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.

Minimum Order Quantity (MOQ)

White labeling/custom branding may require an MOQ (to be discussed during agreement).
For smaller orders, products will be supplied in neutral/unbranded packaging.

Intellectual Property

All designs, firmware, and core technology remain the property of the manufacturer.
OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.

After-Sales Responsibility

Replacement/repair for defective products will be supplied as per warranty terms.
End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.

Optional Customization

Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partner’s requirements.
Custom firmware or feature modifications may be discussed separately.
