CSR 690 DC Swing Gate Roller Operator

CSR 690 DC Swing Gate Roller Operator

Color: Gold
MOQ

Regular price Rs. 50,000.00
Regular price Sale price Rs. 50,000.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

CSR 690 Swing Arm Gate Motor – 600kg Capacity

Upgrade your entrance with our DC Swing Roller Gate Motor (600kg) – designed for heavy-duty automation solution. Built with advanced DC technology.

Features:

🛞 Shock Absorber Wheels: Provides stability and reduces vibrations during gate movement.

📏 Adjustable Height: Wheel height can be fine-tuned up to 3 inches for uneven ground levels.

💪 Heavy Load Capacity: Supports gates weighing up to 600 kg.

🚪 Smooth Operation: Ensures quiet and stable gate opening and closing.

🛡️ Safety Functions: Built-in obstacle detection with auto-stop protection.

🔑 Manual Override: Clutch key for manual operation during power failures.

🌦️ Weather-Resistant Design: Built to withstand outdoor conditions.

🎛️ Smart Controls: Works with remote controls, access systems, and optional smart home integration.

Adjustable Opening Angle: Allows customization of gate swing to 180° (depending on installation).



Click here to view Technical Specifications ▶
Model: CSR 690
Input Voltage: 24V DC
Power: 65W X 2
Torque: 8 Nm
Rotation Speed: 55 RPM
Running Speed: 0-15m/min
Max. Gate Weight: 600 KG
Max. Gate Width: <8m
Noise: ≤56 dB

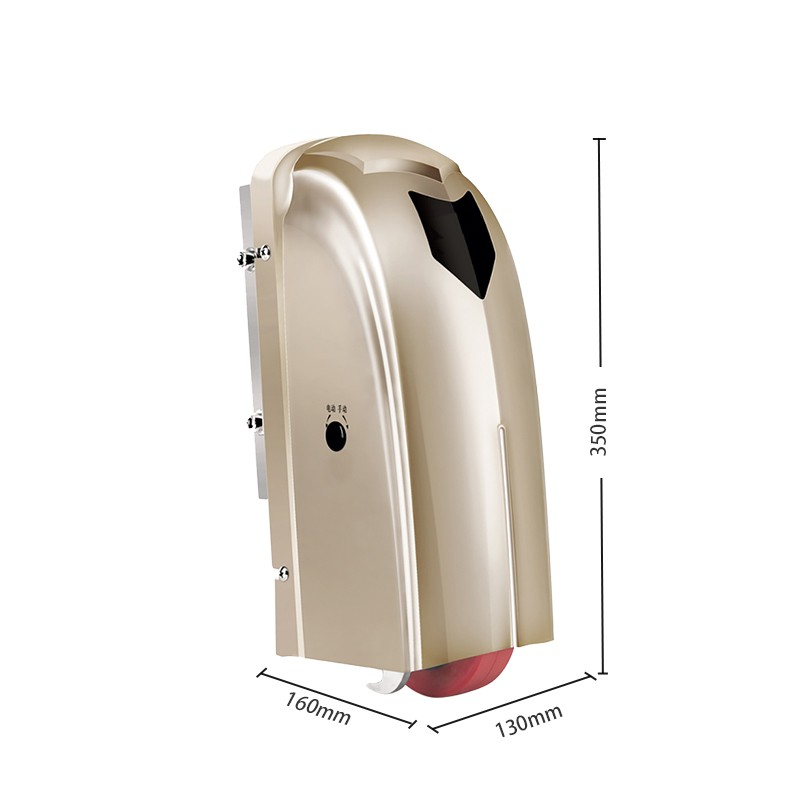

Dimension of Gate Opener: 350× 130 × 155 mm
Dimension of Control Box: 225 × 178 × 88 mm
Packing Weight/Set: 22 KG

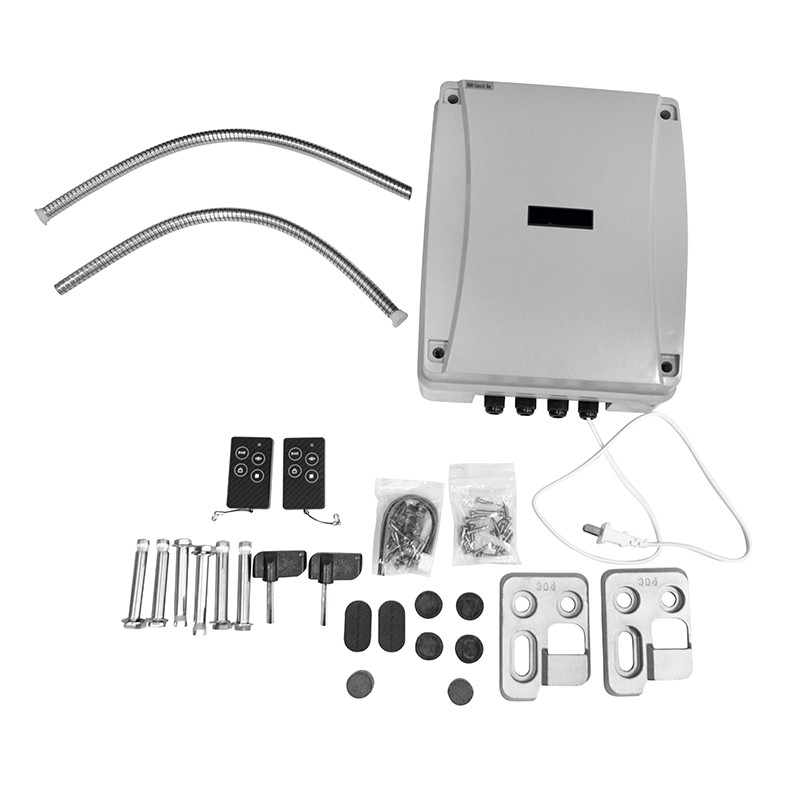

In the box:

  • 2 X 10 kg Gate Motor
  • 1 X Control Box
  • 2 X Remote Controls
  • Brackets, Fittings & Hardware
  • Instruction Manual
  • 2 X Control Box
  • 2 X Clutch Key
  • 2 X Block Iron
  • 2 X Magnet
  • 1 X Set Screw
  • Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc



OEM Partner Availability ▶

Branding & White Labeling

  • Products will be supplied without branding.
  • OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.

Packaging & Documentation

  • Standard packaging will be provided unless custom packaging is specified at order confirmation.
  • OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).

Warranty & Support

  • Standard warranty: from date of supply against manufacturing defects.
  • Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
  • Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.

Minimum Order Quantity (MOQ)

  • White labeling/custom branding may require an MOQ (to be discussed during agreement).
  • For smaller orders, products will be supplied in neutral/unbranded packaging.

Intellectual Property

  • All designs, firmware, and core technology remain the property of the manufacturer.
  • OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.

After-Sales Responsibility

  • Replacement/repair for defective products will be supplied as per warranty terms.
  • End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.

Optional Customization

  • Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partner’s requirements.
  • Custom firmware or feature modifications may be discussed separately.



View full details
