CSR 680 DC Swing Gate Roller Operator

CSR 680 DC Swing Gate Roller Operator

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

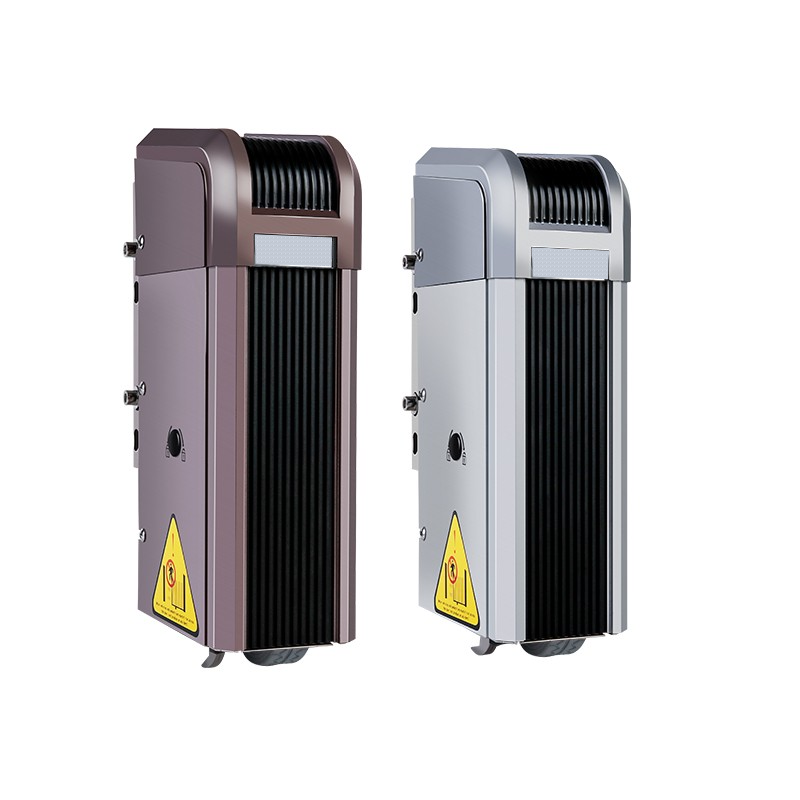

CSR 180 DC Swing Arm Gate Motor – 400kg Capacity

Upgrade your entrance with our DC Swing Roller Gate Motor (400kg) – designed for heavy-duty automation solution. Built with advanced DC technology.

Features:

🛞 Shock Absorber Wheels: Provides stability and reduces vibrations during gate movement.

📏 Adjustable Height: Wheel height can be fine-tuned up to 3 inches for uneven ground levels.

💪 Heavy Load Capacity: Supports gates weighing up to 400 kg.

🚪 Smooth Operation: Ensures quiet and stable gate opening and closing.

🛡️ Safety Functions: Built-in obstacle detection with auto-stop protection.

🔑 Manual Override: Clutch key for manual operation during power failures.

🌦️ Weather-Resistant Design: Built to withstand outdoor conditions.

🎛️ Smart Controls: Works with remote controls, access systems, and optional smart home integration.

Adjustable Opening Angle: Allows customization of gate swing to 180° (depending on installation).



Click here to view Technical Specifications ▶
Model: CSR 180
Input Voltage: 24V DC
Power: 80W
Torque: 6Nm
Rotation Speed: 52 RPM
Running Speed: 0-15m/min
Max. Gate Weight: 400 KG
Max. Gate Width: <6m
Noise: ≤56 dB
Dimension of Gate Opener: 350× 130 × 160 mm
Dimension of Control Box: 225 × 178 × 88 mm
Packing Weight/Set: 20 KG

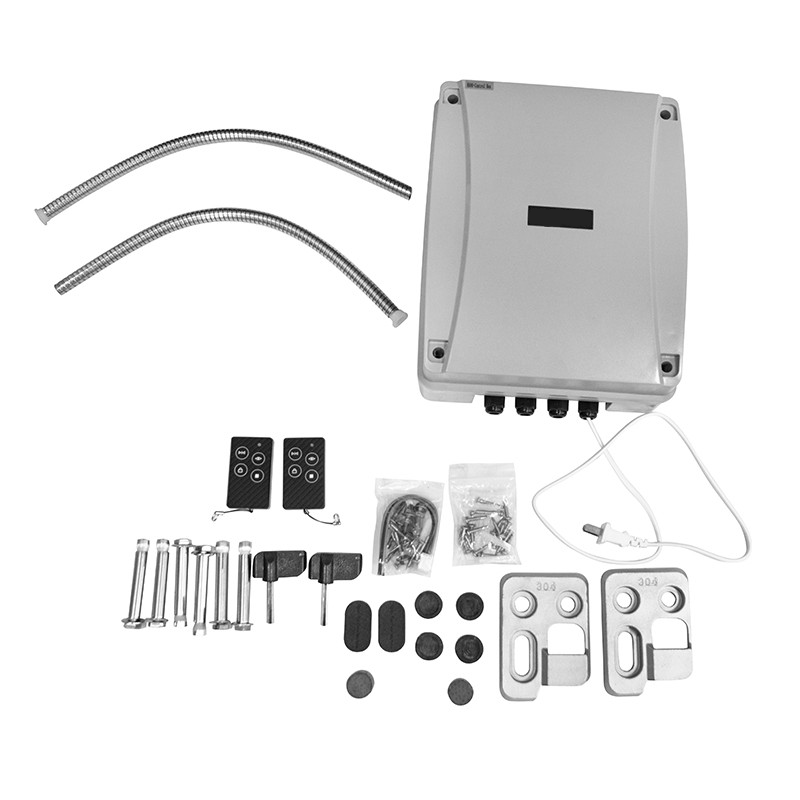

In the box:

  • 2 X 10 kg Gate Motor
  • 1 X Control Box
  • 2 X Remote Controls
  • Brackets, Fittings & Hardware
  • Instruction Manual
  • 2 X Control Box
  • 2 X Clutch Key
  • 2 X Block Iron
  • 2 X Magnet
  • 1 X Set Screw
  • Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc



OEM Partner Availability ▶

Branding & White Labeling

  • Products will be supplied without branding.
  • OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.

Packaging & Documentation

  • Standard packaging will be provided unless custom packaging is specified at order confirmation.
  • OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).

Warranty & Support

  • Standard warranty: from date of supply against manufacturing defects.
  • Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
  • Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.

Minimum Order Quantity (MOQ)

  • White labeling/custom branding may require an MOQ (to be discussed during agreement).
  • For smaller orders, products will be supplied in neutral/unbranded packaging.

Intellectual Property

  • All designs, firmware, and core technology remain the property of the manufacturer.
  • OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.

After-Sales Responsibility

  • Replacement/repair for defective products will be supplied as per warranty terms.
  • End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.

Optional Customization

  • Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partner’s requirements.
  • Custom firmware or feature modifications may be discussed separately.



View full details
