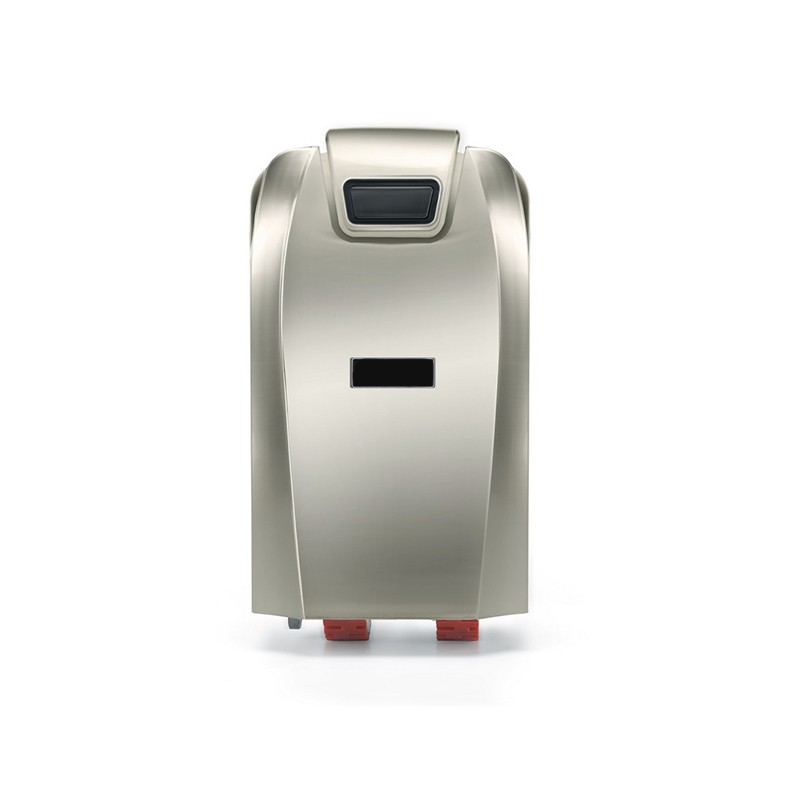

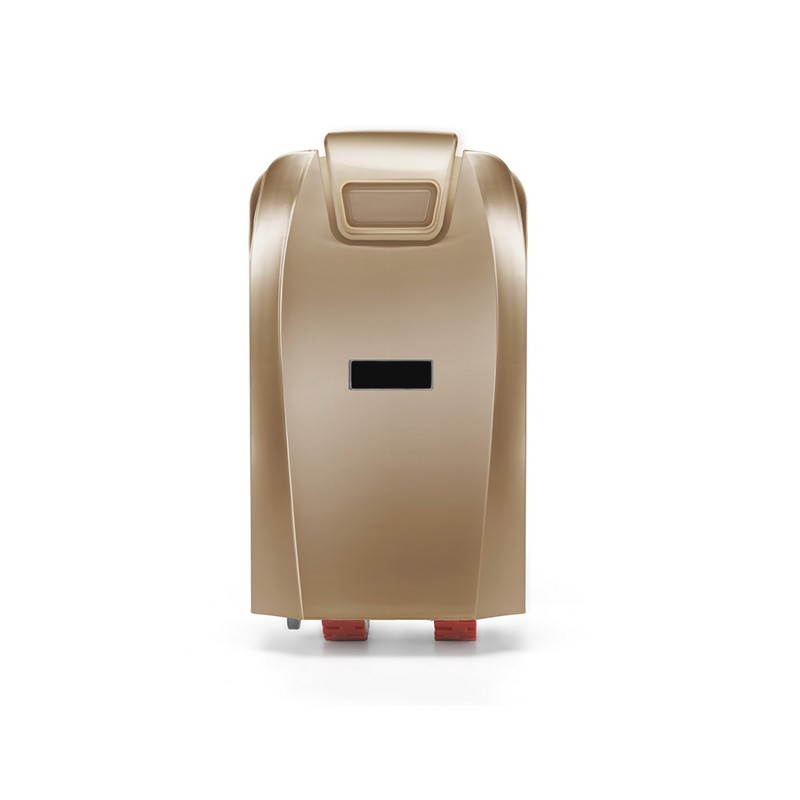

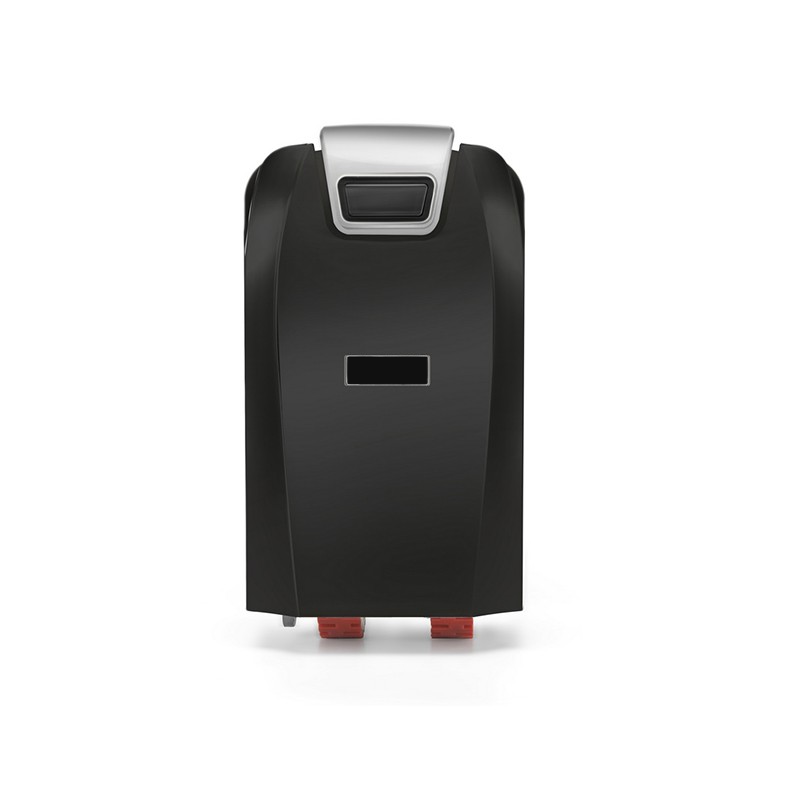

CSR 1000 DC Swing Gate Roller Operator
CSR 1000 DC Swing Gate Roller Operator
Couldn't load pickup availability
CSR 180 DC Swing Arm Gate Motor β 400kg Capacity
Upgrade your entrance with our DC Swing Roller Gate Motor (400kg) β designed for heavy-duty automation solution. Built with advanced DC technology.
Features:

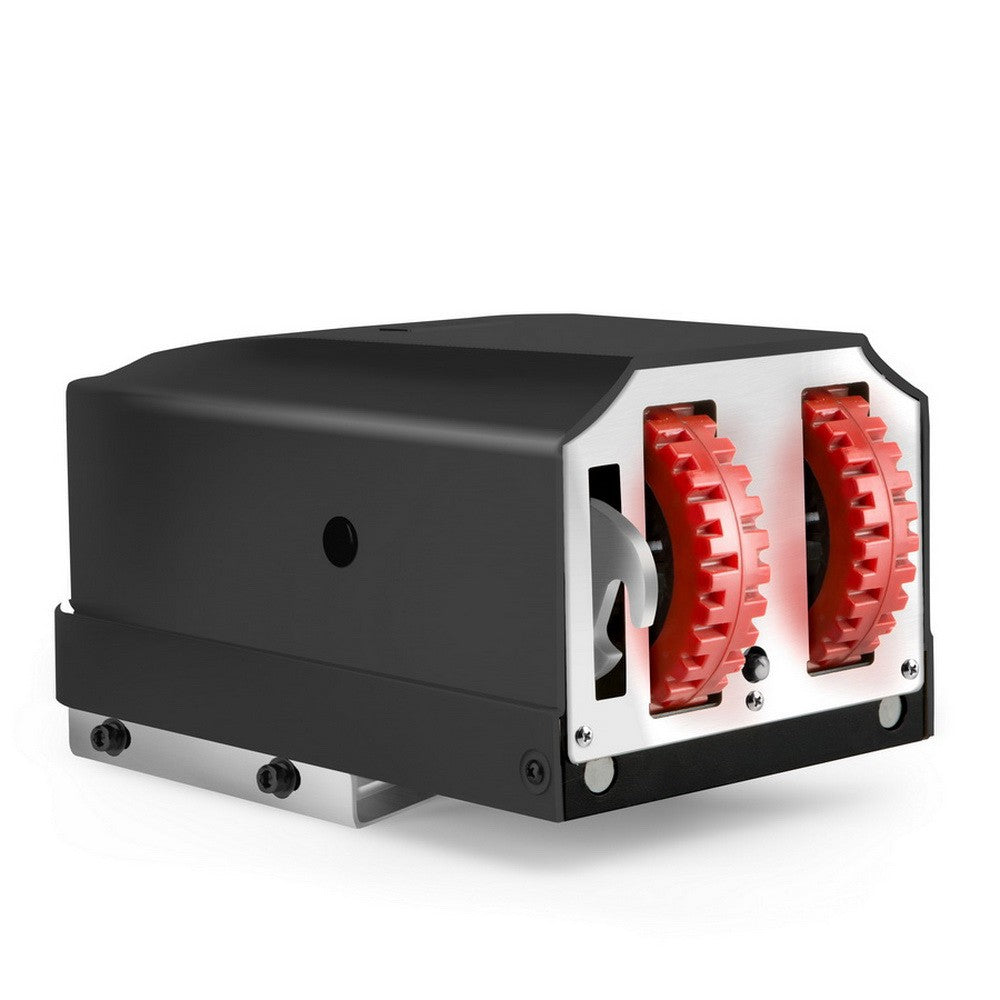

π Shock Absorber Wheels: Provides stability and reduces vibrations during gate movement.
π Adjustable Height: Wheel height can be fine-tuned up to 3 inches for uneven ground levels.
πͺ Heavy Load Capacity: Supports gates weighing up to 400 kg.
πͺ Smooth Operation: Ensures quiet and stable gate opening and closing.
π‘οΈ Safety Functions: Built-in obstacle detection with auto-stop protection.
π Manual Override: Clutch key for manual operation during power failures.
π¦οΈ Weather-Resistant Design: Built to withstand outdoor conditions.
ποΈ Smart Controls: Works with remote controls, access systems, and optional smart home integration.
β‘ Adjustable Opening Angle: Allows customization of gate swing to 180Β° (depending on installation).
Β
Click here to view Technical Specifications βΆ
| Model: | CSR 1000 |
|---|---|
| Input Voltage: | 24V DC |
| Power: | 100W X 2 |
| Torque: | 12 Nm |
| Rotation Speed: | 50 RPM |
| Running Speed: | 0-15m/min |
| Max. Gate Weight: | 1000 KG |
| Max. Gate Width: | <8m |
| Noise: | β€56 dB |

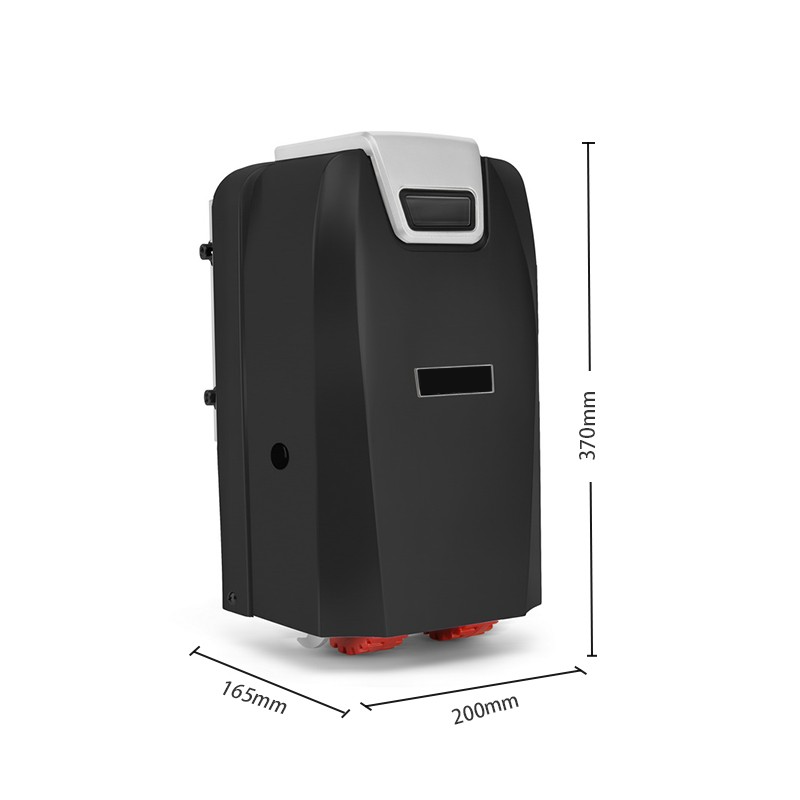

| Dimension of Gate Opener: | 370Γ 200 Γ 165 mm |
| Dimension of Control Box: | 225 Γ 178 Γ 88 mm |
| Packing Weight/Set: | 32 KG |
Β

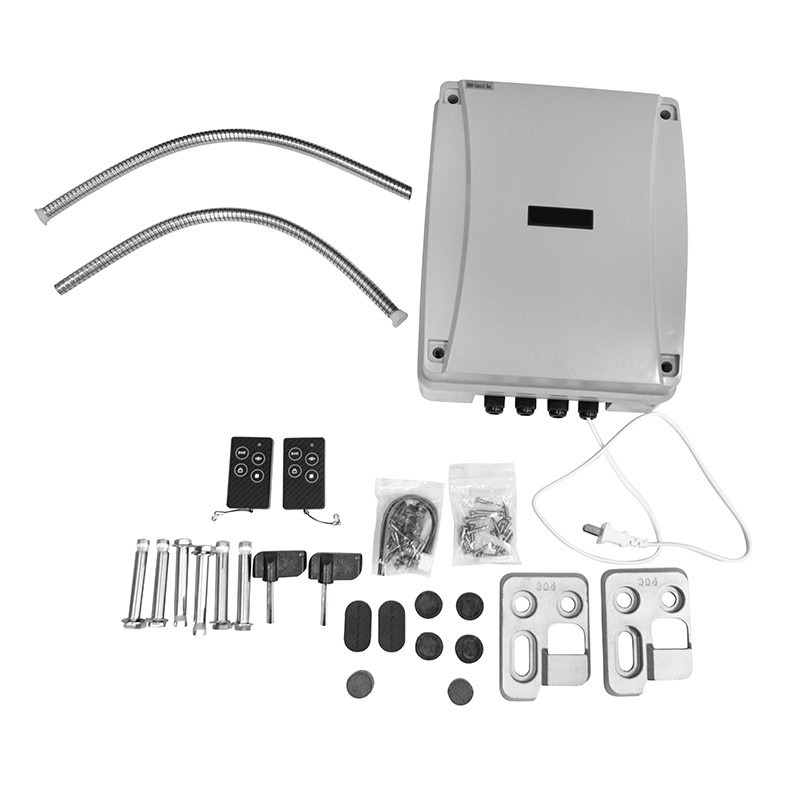

In the box:
- 2 X 15 kg Gate Motor
- 1 X Control Box
- 2 X Remote Controls
- Brackets, Fittings & Hardware
- Instruction Manual
- 2 X Control Box
- 2 X Clutch Key
- 2 X Block Iron
- 2 X Magnet
- 1 X Set Screw
- Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc
Β
OEM Partner Availability βΆ
Branding & White Labeling
- Products will be supplied without branding.
- OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.
Packaging & Documentation
- Standard packaging will be provided unless custom packaging is specified at order confirmation.
- OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).
Warranty & Support
- Standard warranty: from date of supply against manufacturing defects.
- Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
- Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.
Minimum Order Quantity (MOQ)
- White labeling/custom branding may require an MOQ (to be discussed during agreement).
- For smaller orders, products will be supplied in neutral/unbranded packaging.
Intellectual Property
- All designs, firmware, and core technology remain the property of the manufacturer.
- OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.
After-Sales Responsibility
- Replacement/repair for defective products will be supplied as per warranty terms.
- End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.
Optional Customization
- Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partnerβs requirements.
- Custom firmware or feature modifications may be discussed separately.
