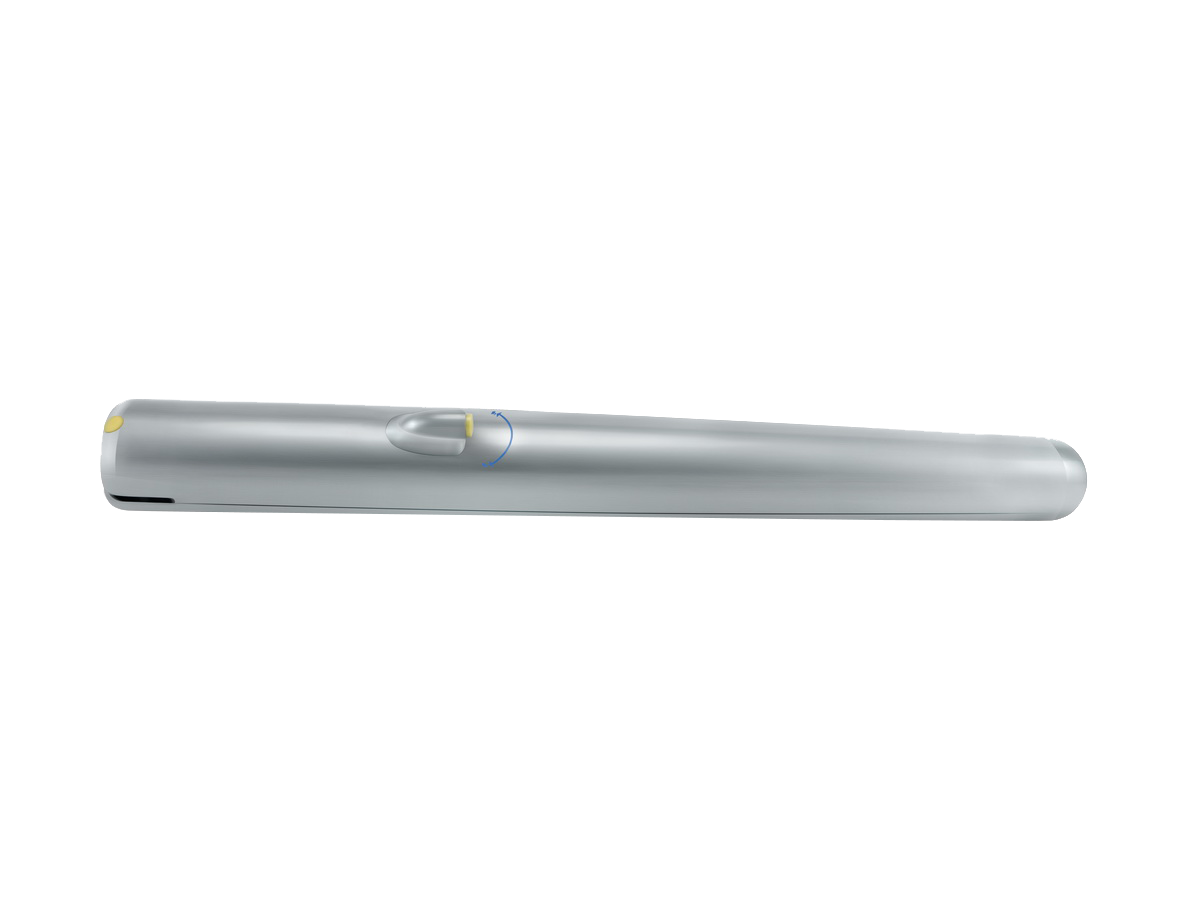

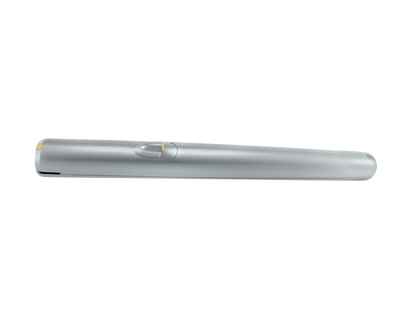

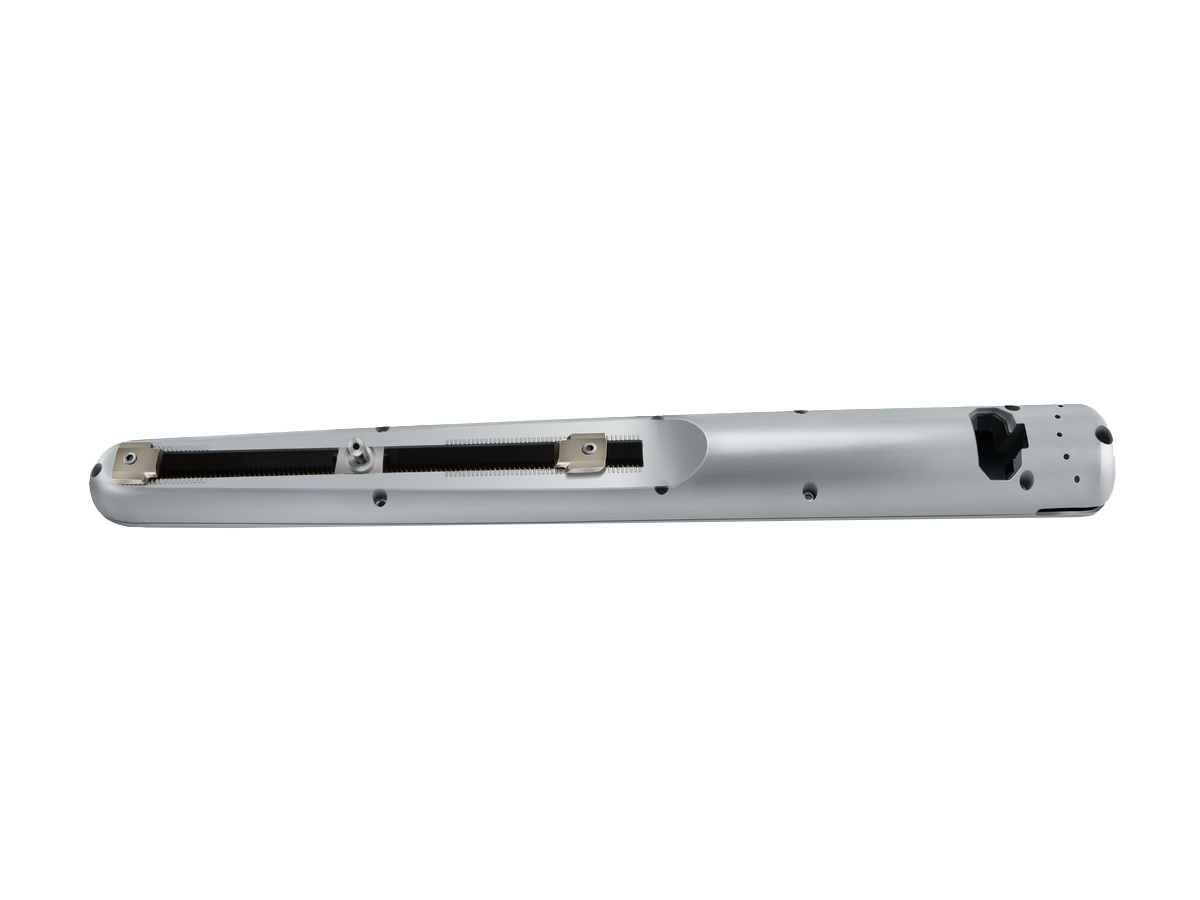

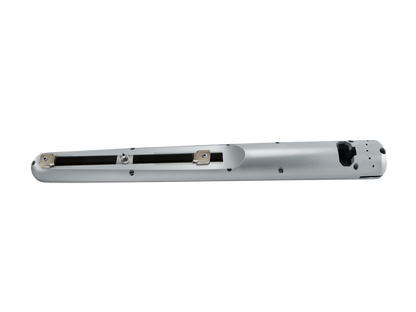

CSA 580 Swing Gate Arm Operator

CSA 580 Swing Gate Arm Operator

Regular price Rs. 0.00
Regular price Sale price Rs. 0.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

CSA 580 Swing Arm Gate Motor – 500kg Capacity

Upgrade your entrance with our DC Swing Arm Gate Motor (500kg) – designed for heavy-duty automation solution. Built with advanced DC technology.

Features:

🤲 Powerful Motorized Arms: Ensures smooth and reliable swing gate automation.

💪 Heavy Load Capacity: Supports gates weighing up to 500 kg.

🚪 Smooth Operation: Ensures quiet and stable gate opening and closing.

🛡️ Safety Functions: Built-in obstacle detection with auto-stop protection.

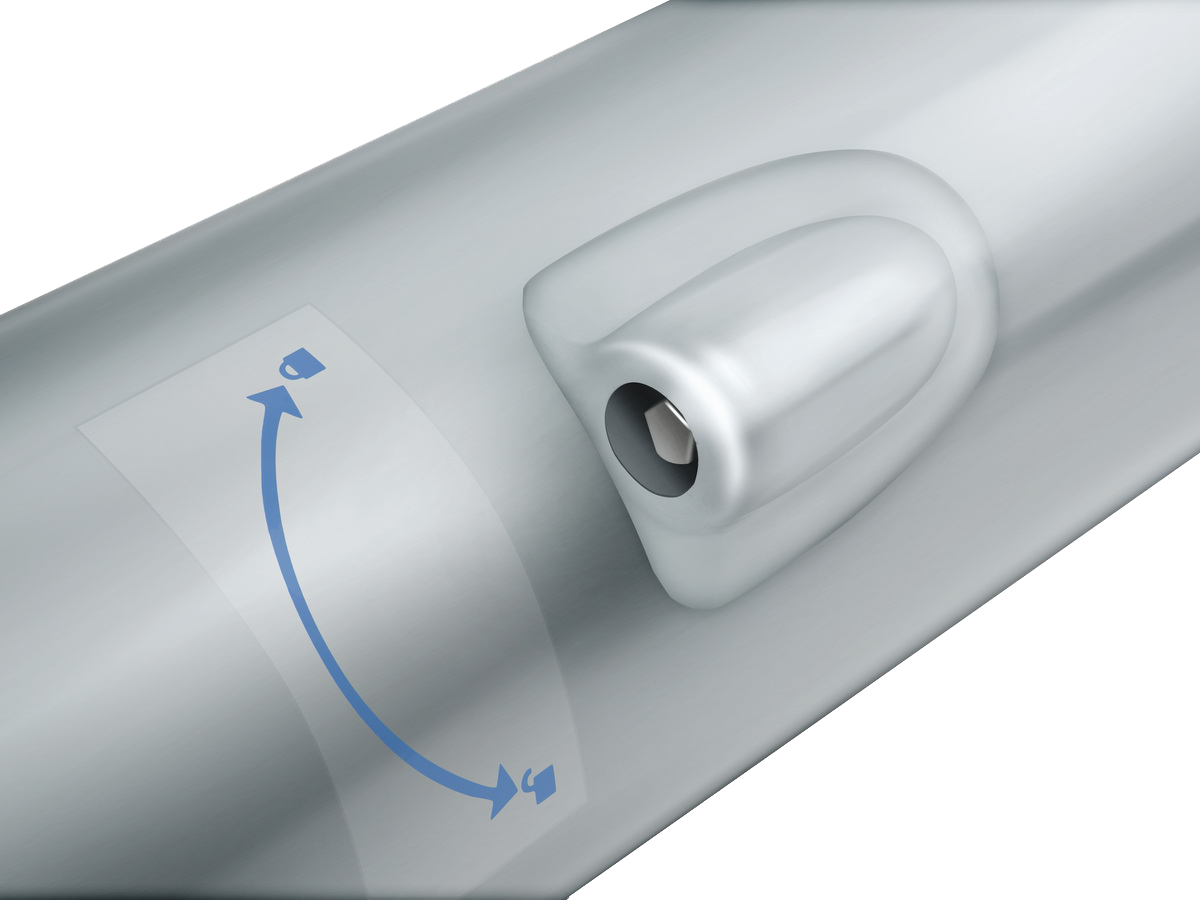

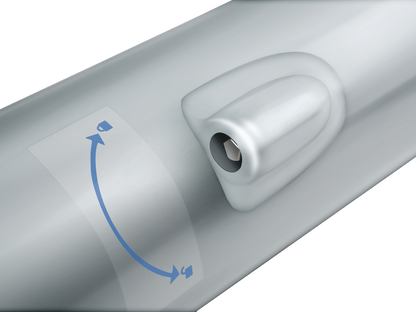

🔑 Manual Override: Clutch key for manual operation during power failures.

🌦️ Weather-Resistant Design: Built to withstand outdoor conditions.

🎛️ Smart Controls: Works with remote controls, access systems, and optional smart home integration.

Adjustable Opening Angle: Allows customization of gate swing up to 120° (depending on installation).



Click here to view Technical Specifications ▶
Model: CSA 500
Input Voltage: 24V DC
Power: 80W
Current: 1.2 A
Thrust Force: 3000 N
Running Time: 30 second
Max. Gate Weight: 500 KG
Reduction Ratio: 1/36
Noise: ≤56 dB
Dimension of Door Opener: 774 × 114 × 67 mm
Dimension of Control Box: 225 × 178 × 88 mm
Packing Weight/Set: 30 KG



In the box:

  • 2 X 10 kg Gate Motor
  • 1 X Control Box
  • 2 X Remote Controls
  • Brackets, Fittings & Hardware
  • Instruction Manual
  • 2 X Control Box
  • 2 X Clutch Key
  • 2 X Block Iron
  • 2 X Magnet
  • 1 X Set Screw
  • Optional Components: Alarm Lamp, Infrared ray, Back-up supply, Bluetooth, Vehicle Remote Control, Mobile Phone Visual Control, WIFI....etc



OEM Partner Availability ▶

Branding & White Labeling

  • Products will be supplied without branding.
  • OEM partners may use their own logo, packaging, and labels subject to prior approval of design and placement.

Packaging & Documentation

  • Standard packaging will be provided unless custom packaging is specified at order confirmation.
  • OEM branding on manuals, boxes, and accessories is possible with minimum order quantities (MOQ).

Warranty & Support

  • Standard warranty: from date of supply against manufacturing defects.
  • Warranty does not cover damages due to improper installation, external accessories, power surges, or physical mishandling.
  • Technical support is provided for OEM partners; end-customer support responsibility lies with the OEM partner unless otherwise agreed.

Minimum Order Quantity (MOQ)

  • White labeling/custom branding may require an MOQ (to be discussed during agreement).
  • For smaller orders, products will be supplied in neutral/unbranded packaging.

Intellectual Property

  • All designs, firmware, and core technology remain the property of the manufacturer.
  • OEM partners may brand and market the product under their own name, but may not claim ownership of the technology.

After-Sales Responsibility

  • Replacement/repair for defective products will be supplied as per warranty terms.
  • End-user warranty handling, returns, and service are the responsibility of the OEM partner unless otherwise agreed in writing.

Optional Customization

  • Additional accessories (Alarm Lamp, Infrared Sensors, Backup Supply, Bluetooth/WiFi modules, Mobile Control, etc.) can be supplied based on partner’s requirements.
  • Custom firmware or feature modifications may be discussed separately.
